The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

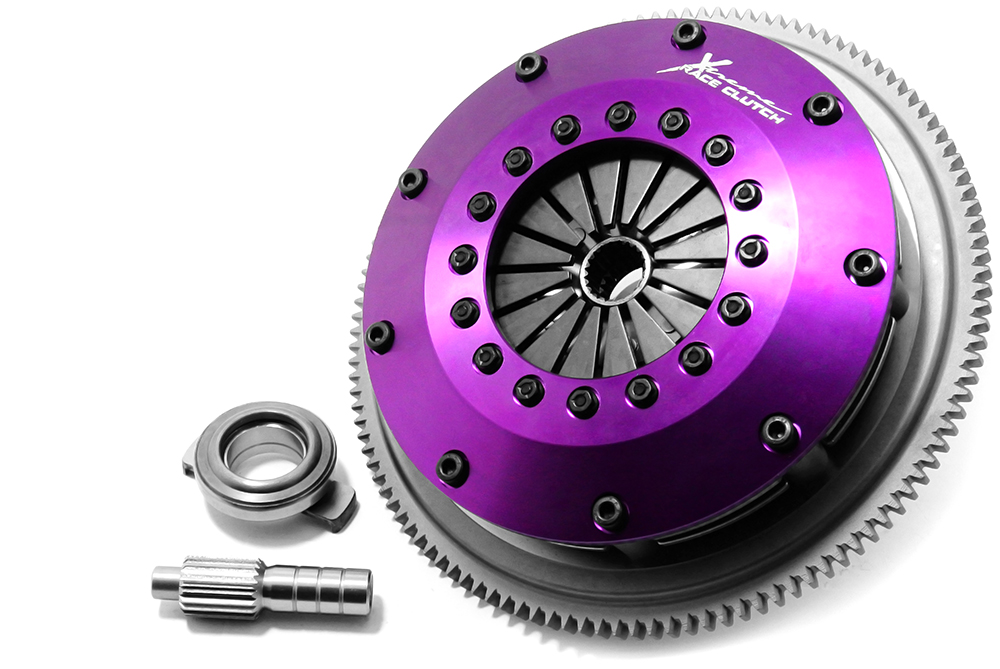

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
.table { margin: 0 auto; border-collapse: collapse; font-size: 12px; width: 100%; } .table tr td { border: 1px solid silver; text-align: center; font-size: 12px; } .xtc { background-color: #f8f8f8; }
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate – track use only
Tech Bulletins:
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional infotmation: – Toyota/Celica/2.0 4WD (ST185)/1989.10-1993.11/3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 – 1993.11) ,
– Toyota/Celica/2.0 4WD (ST185)/1989.10-1994.01/3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 – 1994.01) ,
– Toyota/Celica/2.0 4WD (ST185)/1989.10-1993.09/3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 – 1993.09) ,
– Toyota/MR2/Gen. II | 2.0 (SW20)/1989.12-1999.07/3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 – 1999.07) ,
– Toyota/MR2/Gen. II | 2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 – 1999.07) ,
– Toyota/Celica/2.0 i Turbo 4WD (ST205)/1994.02-1999.11/3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 – 1999.11) ,
– Toyota/MR2/Gen. II | 2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 – 1999.07) ,
– Toyota/Caldina/2.0 4WD (ST215W_)/2000.02-2001.09/3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 – 2001.09) ,
