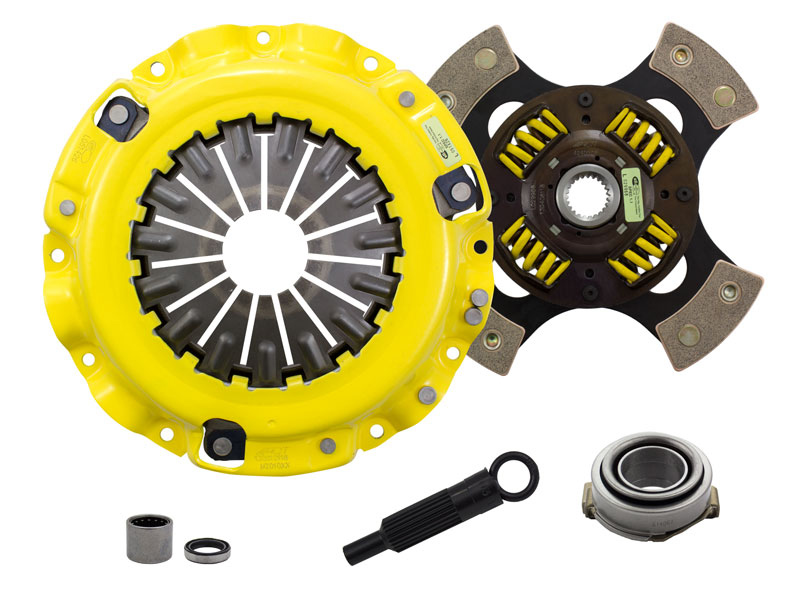

ACT CLUTCH – Z65-XXG4 – MaXX/Race Sprung 4 Pad

Descrizione

Z65-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. disc_diameter_millimeters 240 flywheel_tooth_count pressure_plate_type 30 sfi spline_count 23 spline_size_inches 1 torque_capacity_ft_lbs 625 torque_capacity_nm 847 torque_capacity_over_oe 156%
