ACT CLUTCH – AI4-XXG6 – MaXX/Race Sprung 6 Pad

Descrizione

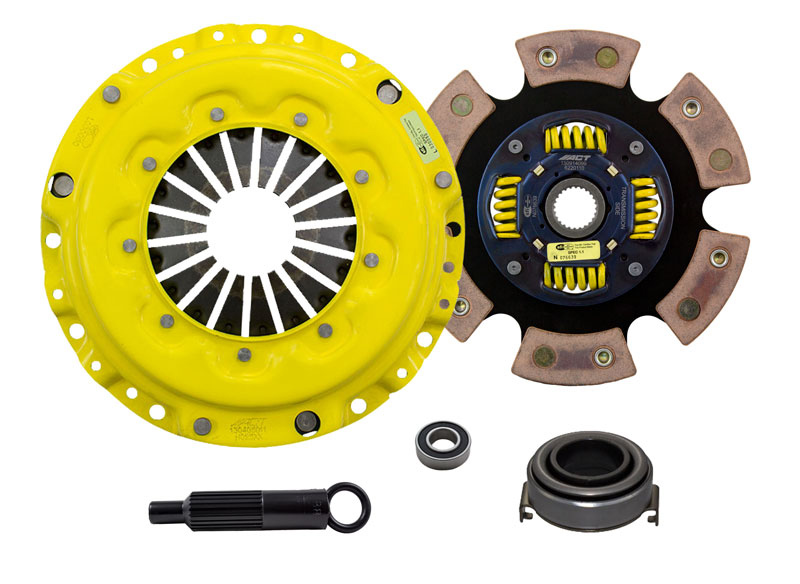

AI4-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. disc_diameter_millimeters 220 flywheel_tooth_count pressure_plate_type 30 sfi spline_count 24 spline_size_inches 1-1/32 torque_capacity_ft_lbs 485 torque_capacity_nm 657 torque_capacity_over_oe 162%
